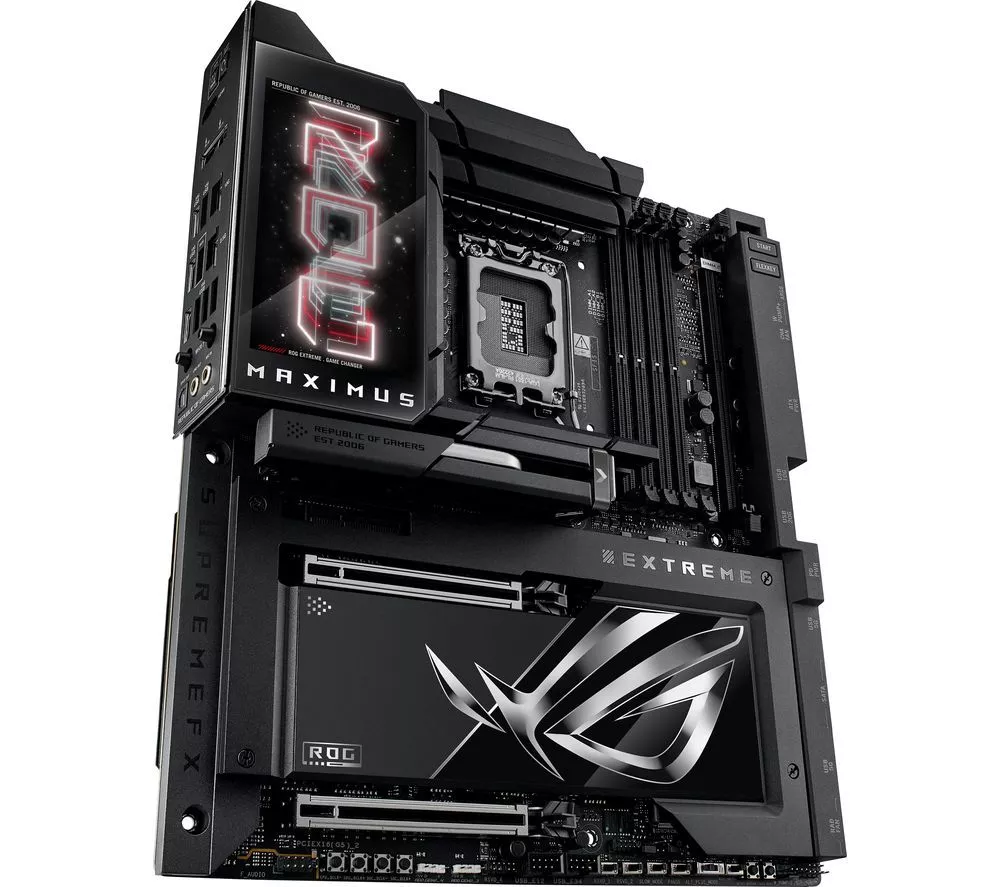

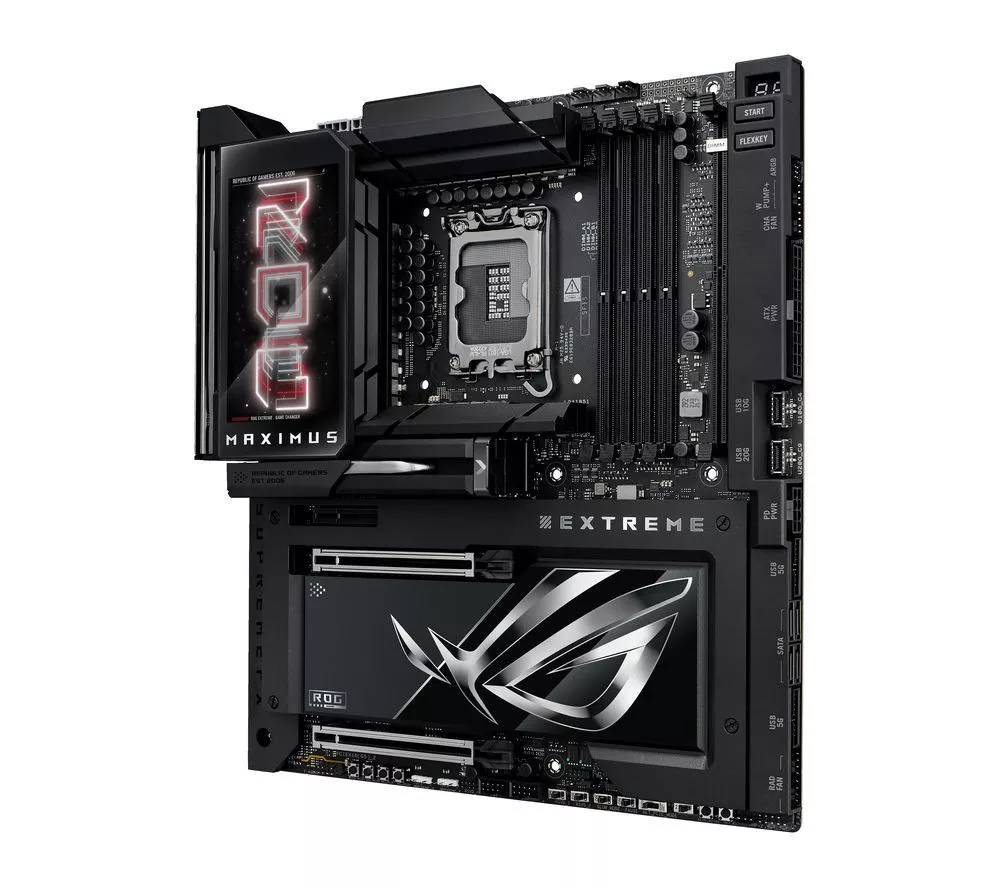

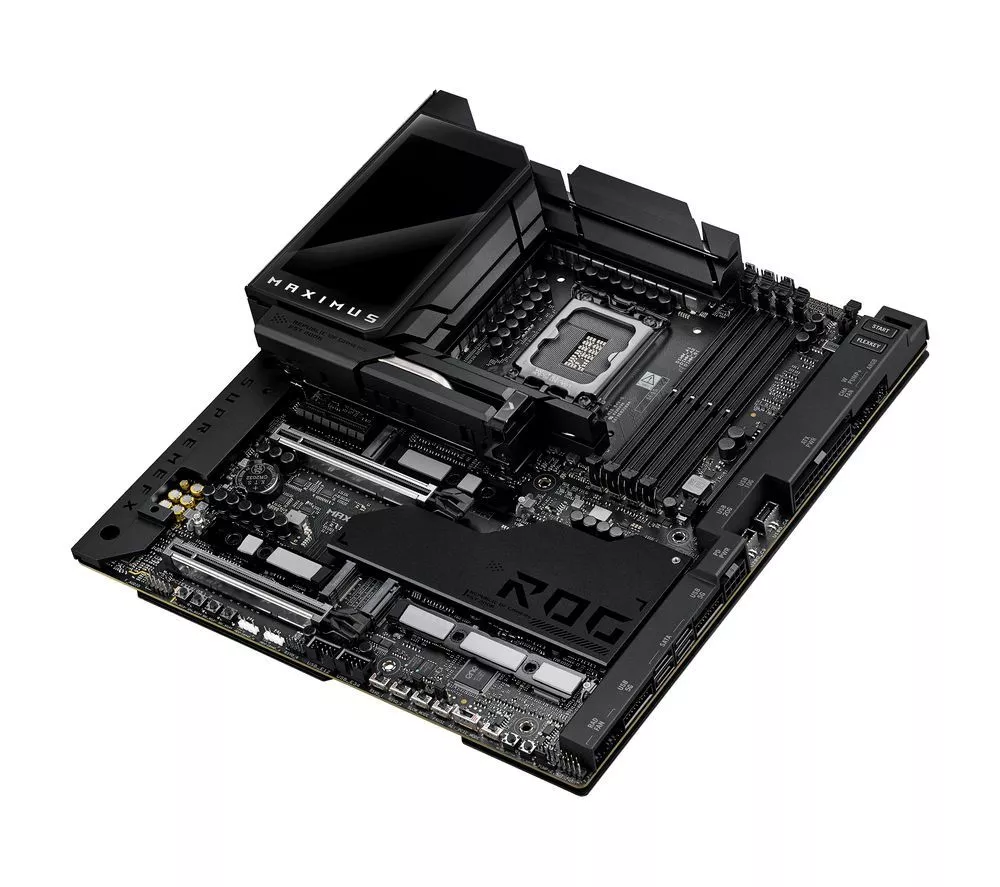

ASUS ROG MAXIMUS EXTREME Z890 WiFi LGA1851 Motherboard

ATX

Intel® Z890

Intel® LGA1851

Intel® Core™ Ultra Processors (series 2)

4 x DIMM (Max RAM: 192 GB)

DDR5

– AI Cooling II
– VRM Heatsink

Windows 11

– HDMI x 1
– DisplayPort x 1

– Intel® 2.5Gb Ethernet x 1
– Marvell AQtion 10Gb Ethernet x 1
– ASUS LANGuard

3.5 mm jack x 2

Thunderbolt 5 x 2
USB Type-C x 3
USB 3.0 x 5

– WiFi module x 1
– S/PDIF x 1

– UEFI AMI BIOS
– Flash ROM (256 MB) x 2

– PCIe 5.0 (x16) x 2 (support x4 mode)
– PCIe 4.0 (x16) x 1

– SATA x 4 (6 GB/s)
– M.2 x 6

– 4-pin CPU Fan header x 1
– 4-pin CPU OPT Fan header x 1
– 4-pin Radiator Fan headers x 1
– 4-pin Chassis fan headers x 2
– W_PUMP+ headers x 2

– Power LED

– Power
– Clear CMOS
– BIOS FlashBack

– 24-pin main power x 1
– 8-pin 12 V power x 2
– 8-pin PCIe Power connector x 1

Thermal sensor header x 1

– Addressable Gen 2 headers x 3
– Clear CMOS header x 1
– Chassis intrusion header x 1
– COM Port header x 1
– Front Panel Audio header (F_AUDIO) x 1
– S/PDIF Out header x 1
– SPI TPM header (14-1pin) x 1
– 10-1 pin System Panel header x 1
– Thermal Sensor header x 1

– USB Type-C x 2
– USB 3.0 x 2
– USB 2.0 x 4

– ASUS ROG MAXIMUS EXTREME Z890 WiFi LGA1851 Motherboard
– 1-to-3 ARGB splitter cable x 1
– 1-to-2 ARGB splitter cable x 1
– 1-to-4 fan splitter cable x 2
– ROG weave SATA 6G cable packages x 2
– 3-in-1 Thermistor cables pack x 1
– ROG Q-DIMM.2 with Heatsink
– ROG DIMM.2 with heatsink
– M.2 pad package for ROG Q-DIMM.2
– Thermal pad for ROG Q-DIMM.2 x 2
– Additional Cooling Kit
– Thermal pad for M.2 22110 x 2
– DDR5 Fan holder
– ASUS WiFi Q-Antenna
– Q-connector
– ROG logo plate sticker
– ROG screwdriver
– ROG stickers
– ROG VIP card
– M.2 Q-Slide packages
– M.2 backplate rubber packages x 6
– ROG Bottle Opener
– Installation Media
– USB drive with utilities and drivers
– Documentation
– Quick start guide

– ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
– Internet Security (1-year full version)
– ASUS Exclusive Software
– Armoury Crate
– AIDA64 Extreme (1 year full version)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– GameFirst
– HWiNFO
– Power Saving
– LCD Display
– ASUS AI Advisor
– ASUS Driver Hub
– Turbo Vcore
– ASUS GlideX
– Thunderbolt™ Share
– USB Wattage Watcher
– WinRAR (40 Days Free Trial)
– Adobe Creative Cloud (Free Trial)
– UEFI BIOS
– AI Overclocking Guide
– NPU Boost
– ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey

3.16 kg

3 years

50 x 277 x 305 mm (H x W x D)

Black
