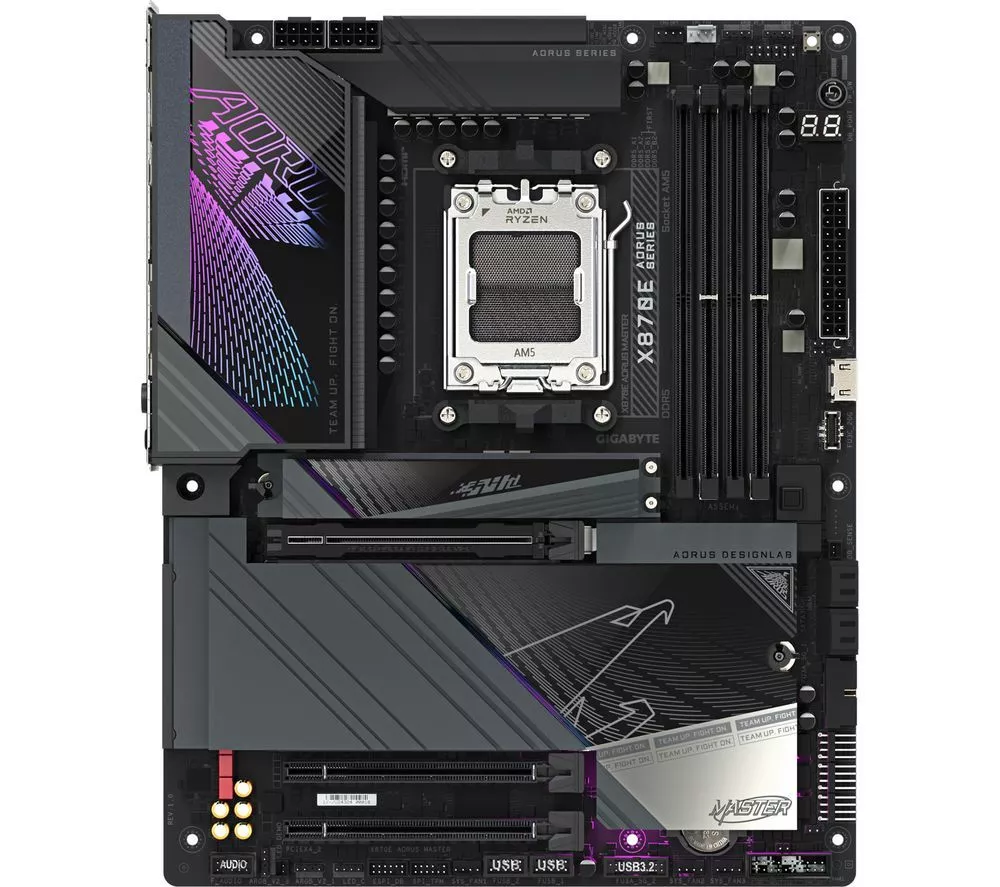

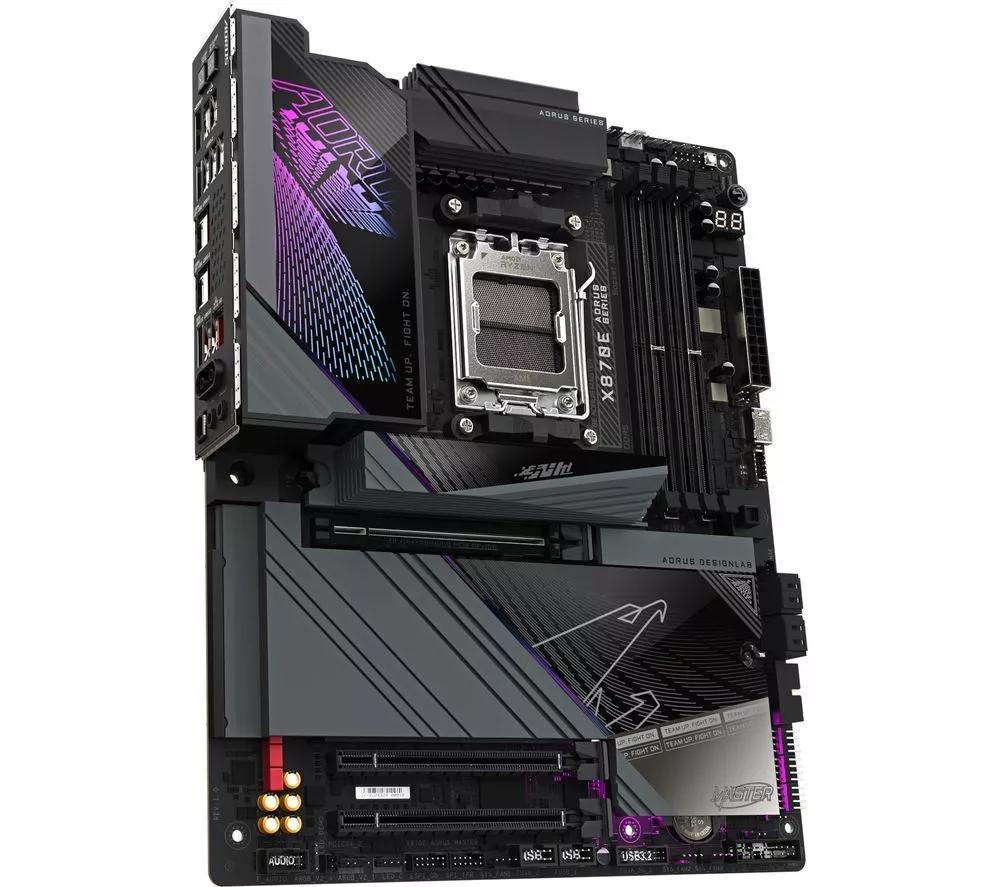

Technical specifications for GIGABYTE Aorus Master X870E AM5 Motherboard
OVERVIEW
Form factor
ATX
Chipset
AMD X870E
Socket
AMD AM5
Processor models supported
– AMD Ryzen 9000 Series processors – AMD Ryzen 8000 Series processors – AMD Ryzen 7000 Series processors
Memory slots
4 x DIMM (Max RAM: 256 GB)
Memory standard
DDR5
Cooling features
– Fan cooling – Smart Fan 6 – AIO fan control – DDR Wind Blade
Operating systems supported
Windows 11 or later

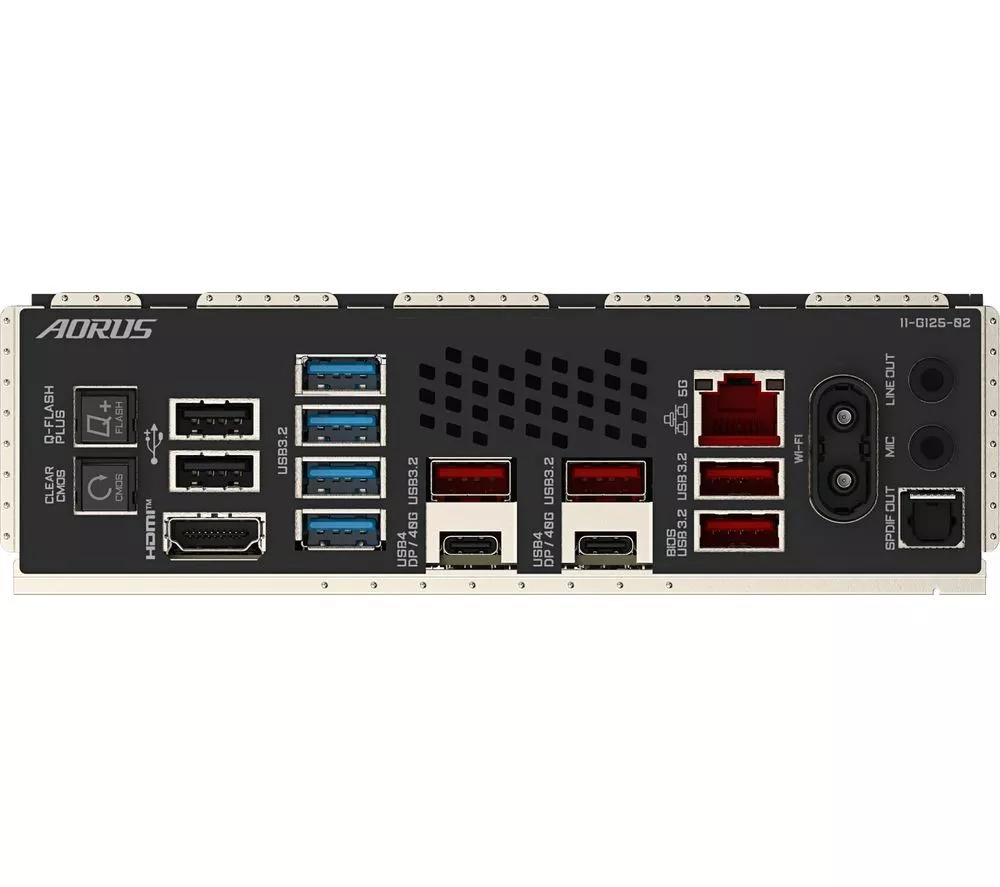

EXTERNAL CONNECTIVITY
Video output
HDMI x 1
LAN
Realtek 5GbE LAN chip
Audio
– 3.5 mm jack x 2
USB
– USB Type-C x 2 – USB 3.2 x 8 – USB 2.0 x 2
INTERNAL CONNECTIVITY
BIOS
UEFI AMI BIOS
Expansion slots
– PCI 5.0 (x16) x 1 – PCIe 4.0 (x16) x 2 – PCIe 3.0 (x16) x 1
Storage slots
– SATA x 4 (6 GB/s) – M.2 x 4
Cooling
– CPU fan header x 1 – CPU fan/water cooling pump header x 2
Buttons
– Power button – Reset button – Q-Flash Plus – Clear CMOS button
Power
– 24-pin EATX x 1 – 8-pin ATX x 2
Sensors
Temperature sensor x 2
Other internal connections
– RGB LED strip header x 2 – TPM header x 1
USB
– USB Type-C x 1 – USB 3.2 x 2 – USB 2.0 x 2
GENERAL
Box contents

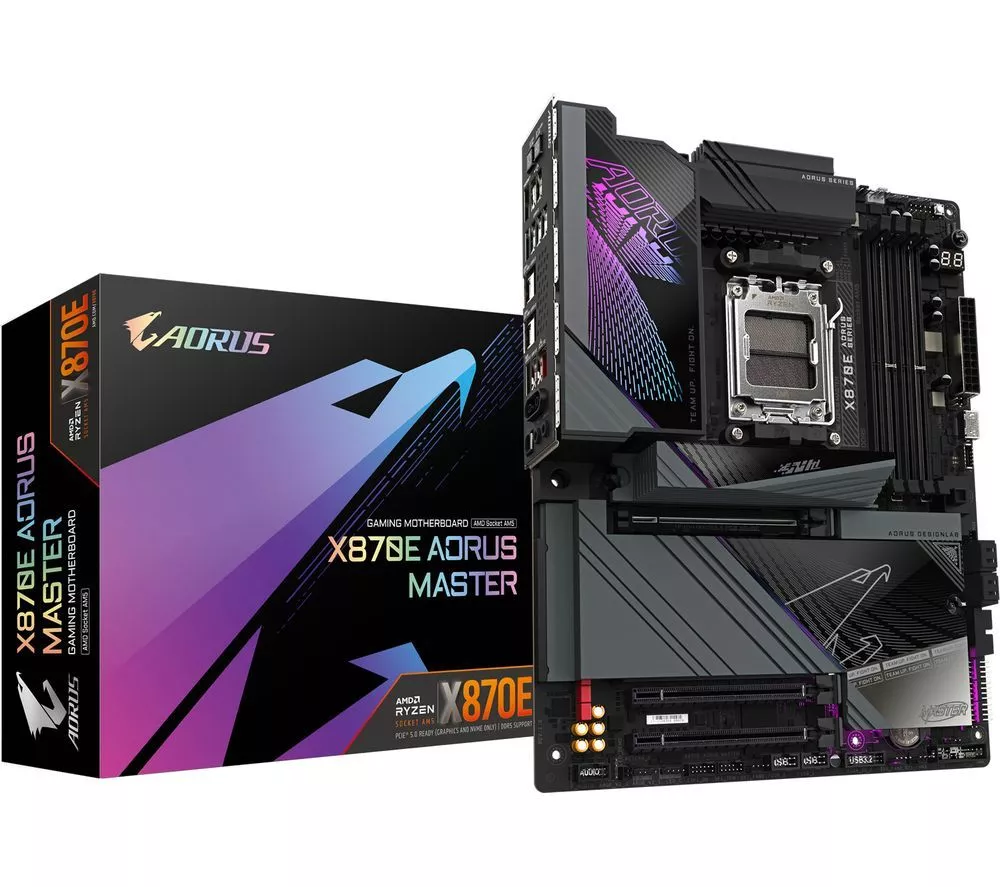

– Gigabyte Aorus Master X870E AM5 Motherboard – 1 x Antenna – DDR Wind Blade x 1 – DDR Wind Blade fan extension cable x 1 – SATA cables x 2 – Noise Detection Cable x 1 – Thermistor Cables x 2 – Velcro Cable Ties x 2 – G Connector x 1 – Manual – Quick Installation Guide
