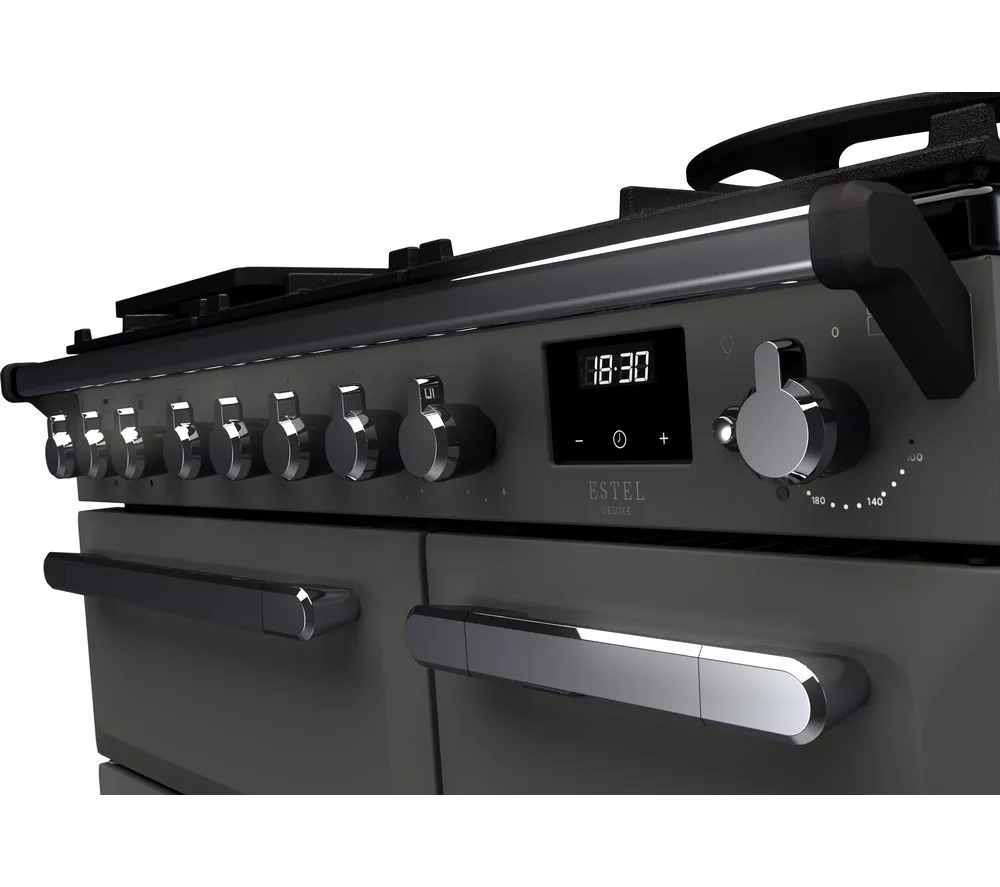

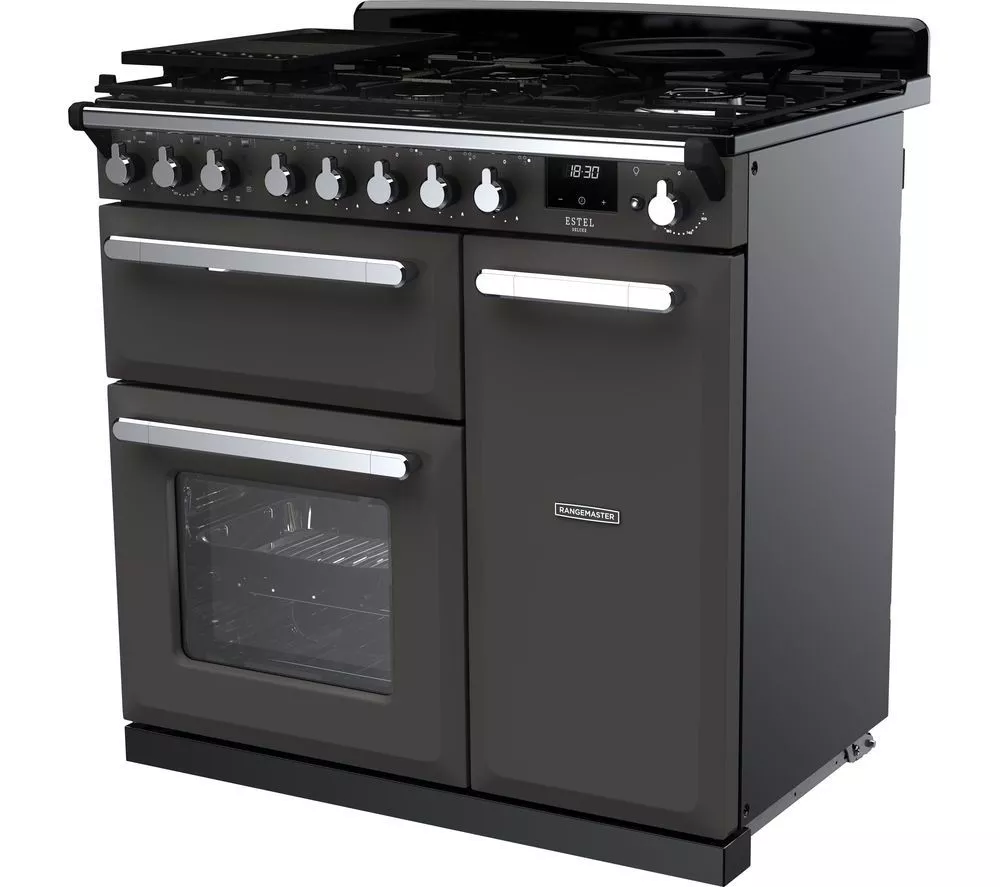

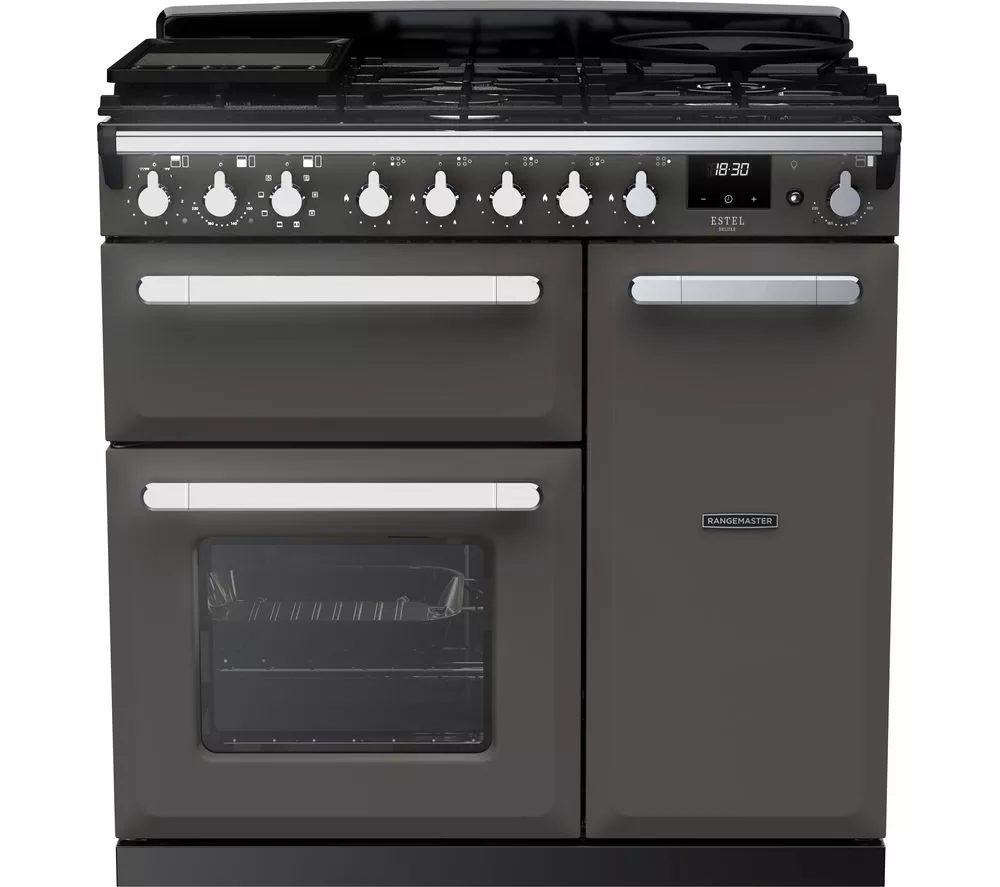

Technical specifications for RANGEMASTER Estel Deluxe ESDL90DFPSLT/CM1 90 cm Dual Fuel Range Cooker – Slate & Chrome
OVERVIEW
Type
Freestanding dual fuel range cooker
Fuel
Dual fuel
Colour
Slate & chrome
LPG option
Yes, kit available
Oven type
– Main: electric
– Second: electric
– Second: electric
Number of ovens
2
Hob type
Gas
Number of burners
5
Number of grills
1
CONTROLS
Control type
Dials
Timer type
– Fully programmable main oven
– Countdown timer
– Countdown timer
Display type
LED display
Ignition system
Automatic
Wok burner
Yes
Pan supports
Cast iron
Flame Supervision Device (FSD)
Yes
Griddle
Yes
OVENS
Oven cleaning
– Main: catalytic liners
– Second: enamel coating
– Second: enamel coating
Energy rating
– Main: A
– Second: A
– Second: A
Other features
– Telescopic shelf
– Handy rack in main oven
– Plate rack in RH oven
– Handy rack in main oven
– Plate rack in RH oven
Functions
– Duo
– Fan Oven
– Fanned Grilling
– Fan Assisted
– Conventional
– Browning
– Base Heat
– Defrost
– Fan Oven
– Fanned Grilling
– Fan Assisted
– Conventional
– Browning
– Base Heat
– Defrost
Energy consumption
– Main: 1.01 & 0.88 kWh
– Second: 0.79 kWh
– Second: 0.79 kWh
Viewing window
– Main: triple glazed
– Second: double glazed
– Second: double glazed
Oven type
– Main: multifunction
– Second: fan
– Second: fan
Size
– Main: large
– Second: large
– Second: large
Capacity
– Main: 80 litres
– Second: 67 litres
– Second: 67 litres
Interior light
– Main: yes
– Second: no
– Second: no
Main oven shelves
– 2 shelf
– 7 shelf positions
– 7 shelf positions
Second oven shelves
– 4 shelves
– 9 shelf positions
– 9 shelf positions
Door opening style
– Main: Left-hinged
– Second: Right-hinged
– Second: Right-hinged
Removeable door glass
– Main: yes
– Second: no
– Second: no
GRILL
Grill type
Separate variable electric grill
Grill features
– Deluxe glide out grill
– 4 height positions
– 4 height positions
Grill capacity
29 litres
Grill cleaning
Enamel coating
Boxed dimensions
1006 x 1004 x 720 mm (H x W x D)
Box contents
– Rangemaster Estel Deluxe ESDL90DFPSLT/CM1 90 cm Dual Fuel Range Cooker
– Griddle
– Shelves
– Grill pan
– Wok cradle
– Griddle
– Shelves
– Grill pan
– Wok cradle
Weight
123.38 kg
Boxed weight
131.77 kg
Dimensions
895 x 900 x 617 mm (H x W x D)
Recess dimensions
895 x 910 x 617 mm (H x W x D)
Manufacturer’s guarantee
2 years
INSTALLATION
Minimum distance required
– 650 mm above hob
– 5 mm to the sides
– 5 mm to the sides
Electrical installation
This product requires hardwiring to a 32 Amp fuse and should be installed by a qualified installer, such as one of our Tech Experts.
Electrical power rating
8.3 kW
Cooker legs
Telescoping legs (40 mm)
Gas & dual fuel installation
Please note this product should be installed by a qualified Gas Safe engineer, such as one of our Tech Experts (available in the UK only).
Power supply
32 Amp (Requires hardwiring to a dedicated cooker circuit)
