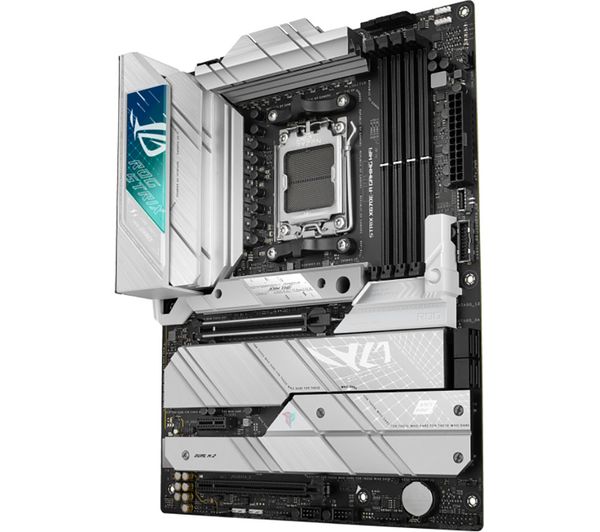

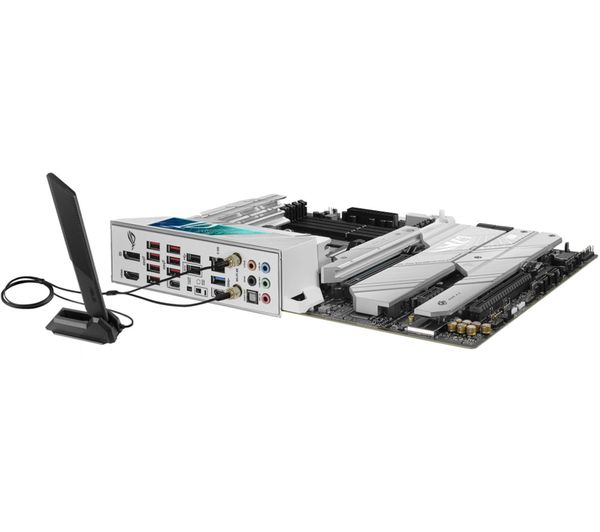

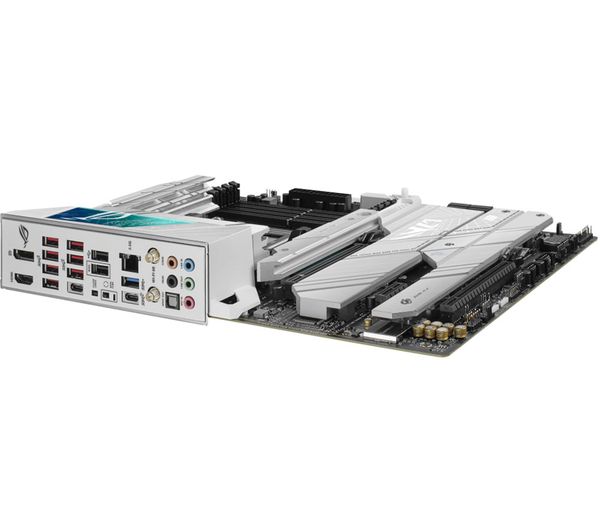

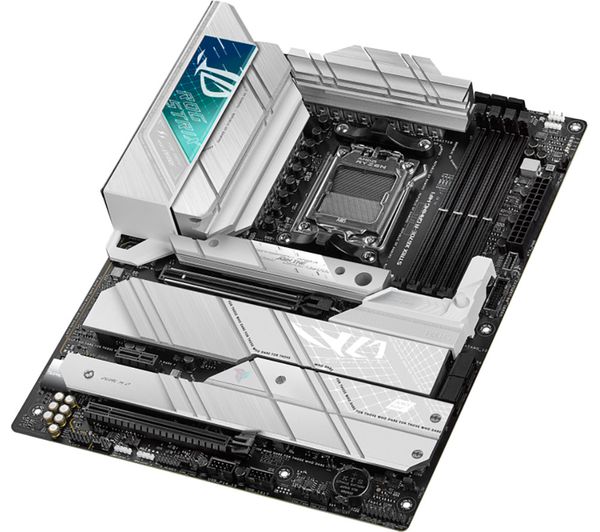

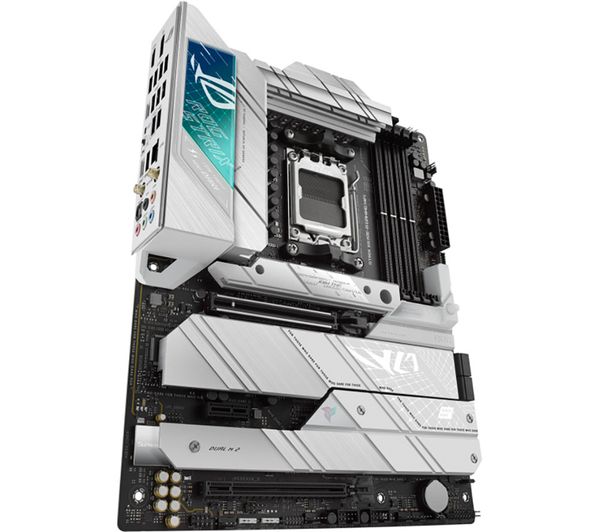

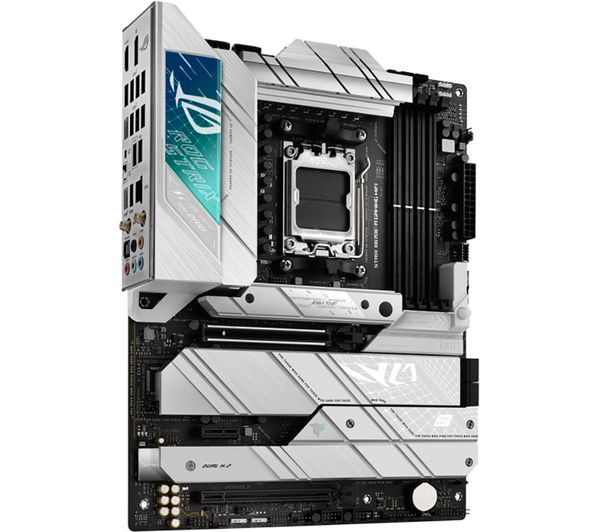

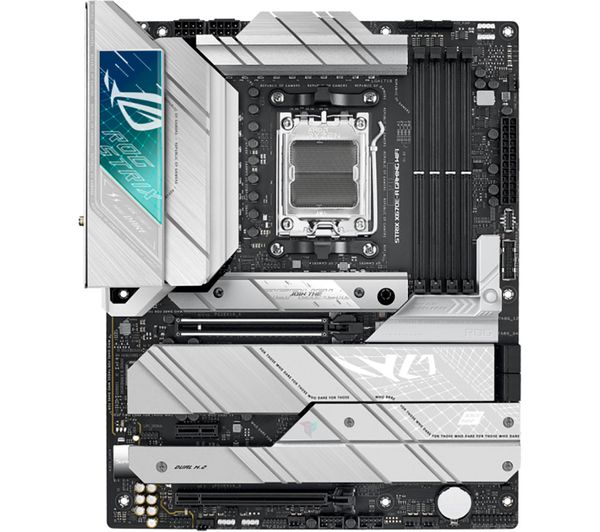

Technical specifications for ASUS ROG STRIX X670E-A GAMING AM5 Motherboard
OVERVIEW
Form factor
ATX
Chipset
AMD X670
Socket
AMD AM5
Processor models supported
AMD Ryzen 7000 Series desktop processors
Memory slots
4 x DIMM (Max RAM: 128 GB)
Memory standard
DDR5
Multi-GPU support
No
Operating systems supported
Windows 10 or later
EXTERNAL CONNECTIVITY
Video output
– HDMI x 1
– DisplayPort x 1
LAN
Intel® 2.5Gb Ethernet x 1
Audio
Audio jacks x 5
USB
– USB Type-C x 2
– USB 3.2 Gen 2 x 7
– USB 3.2 Gen 1 x 1
– USB 2.0 x 2
Other external connections
WiFi module x 1
INTERNAL CONNECTIVITY
BIOS
– 256 Mb Flash ROM
– UEFI AMI BIOS
Expansion slots
– PCIe 5.0 (x16) (supports x16 mode) x 1
– PCIe 4.0 (x16) (support x4 mode) x 1
– PCIe 3.0 (x1) x 1
Storage slots
– SATA x 4 (6 GB/s)
– M.2 Gen5 x 2 (64 GB/s)
– M.2 Gen4 x 2 (32 GB/s)
Cooling
– CPU fan header 4-pin x 1
– CPU OPT fan header 4-pin x 1
– AIO Pump header 4-pin x 1
– Chassis fan headers 4-pin x 5
Case
– Power LED x 1
– BIOS FlashBack LED x 1
Buttons
– Power
– Reset
– BIOS FlashBack
Power
– 24-pin EATX x 1
– 8-pin ATX 12 V x 2
Sensors
Thermal sensor header x 1
Other internal connections
– Thunderbolt 4 header x 1
– Addressable Gen 2 headers x 3
– Aura RGB header x 1
– Clear CMOS header x 1
– CPU Over Voltage jumper x 1
– Front Panel Audio header (AAFP) x 1
– 20-3 pin System Panel header x 1
USB
– USB Type-C x 1
– USB 3.2 x 2
– USB 2.0 x 4
GENERAL

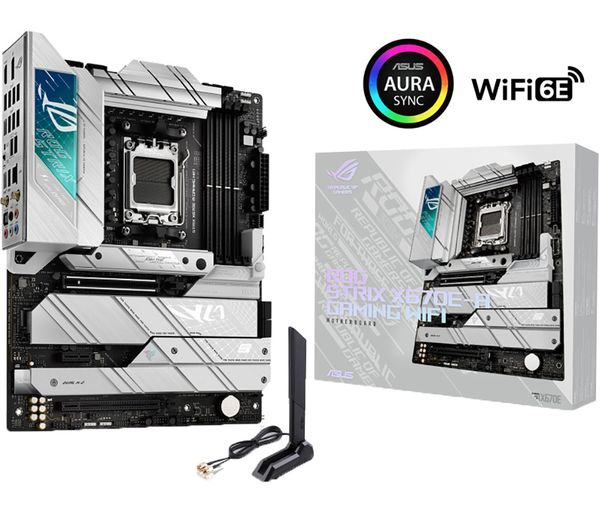

Box contents
– Asus ROG STRIX X670E-A GAMING AM5 Motherboard
– I/O Shield
– WiFi antennas
– Cable ties pack
– SATA cables x 2
– M.2 thermal pad
– M.2 Q-Latch package
– M.2 Q-Latch package for M.2 backplate
– M.2 rubber package x 2
– M.2 backplate rubber package x 1
– ROG key chain
– ROG Strix stickers
– ROG Strix thank you card
– User guide
Software included
– Armoury Crate
– AI Suite 3
– GameFirst VI
– Fan Xpert 4
– ROG CPU-Z
– AURA Creator
– AURA Sync
– MyAsus
– Sonic Studio III
– Sonic Radar III
– DTS Sound Unbound
– MyAsus
– Norton Anti-virus software (Free Trial version)
– AIDA64 Extreme (60-day free trial)
– WinRAR
– ASUS EZ DIY
– ASUS EZ Flash 3
– Dynamic OC Switcher
– FlexKey
