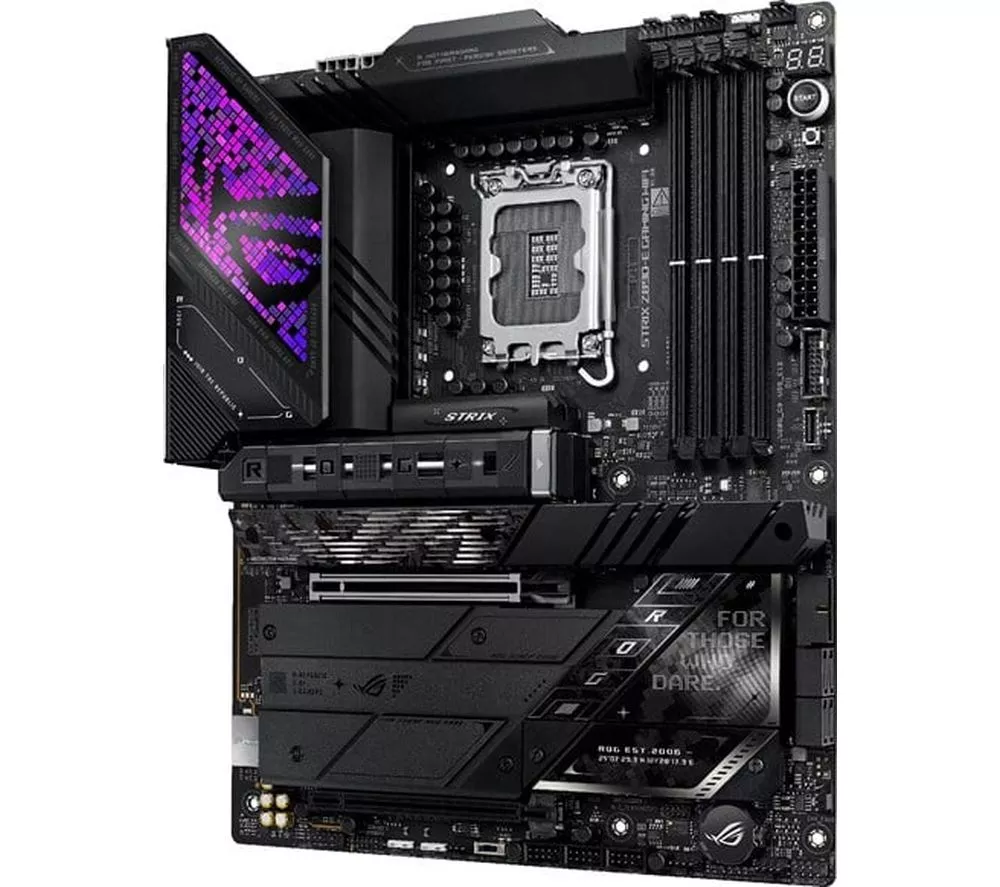

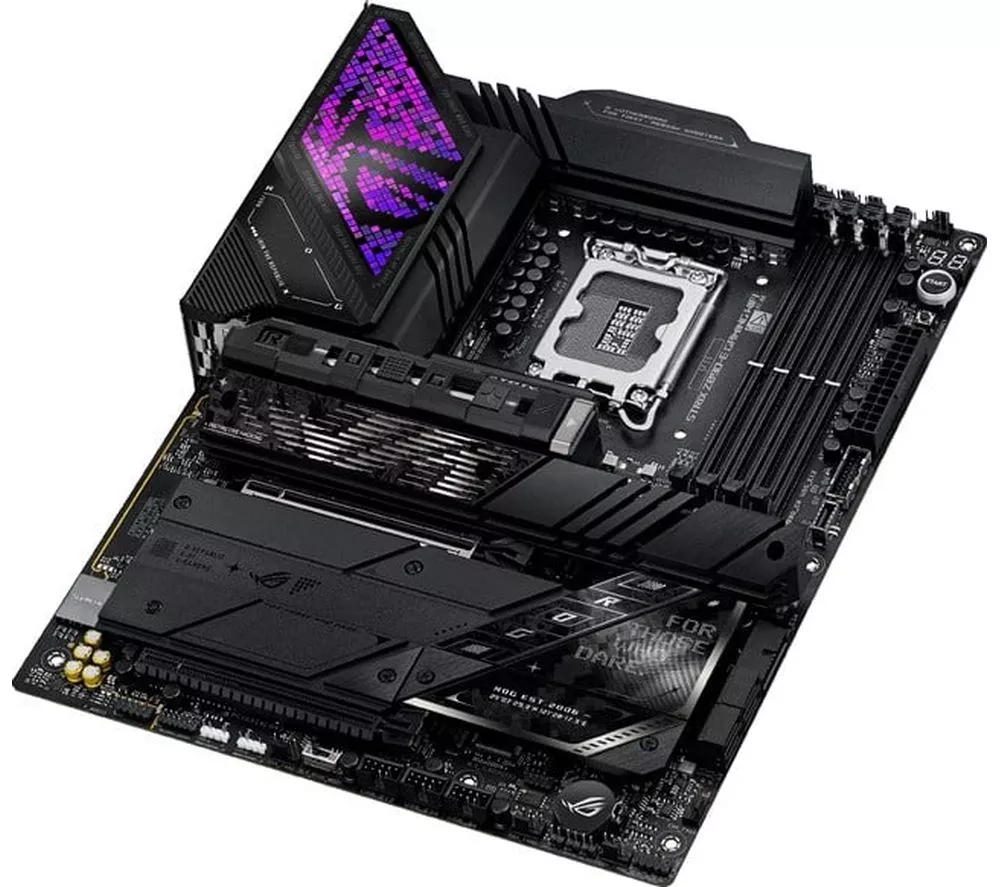

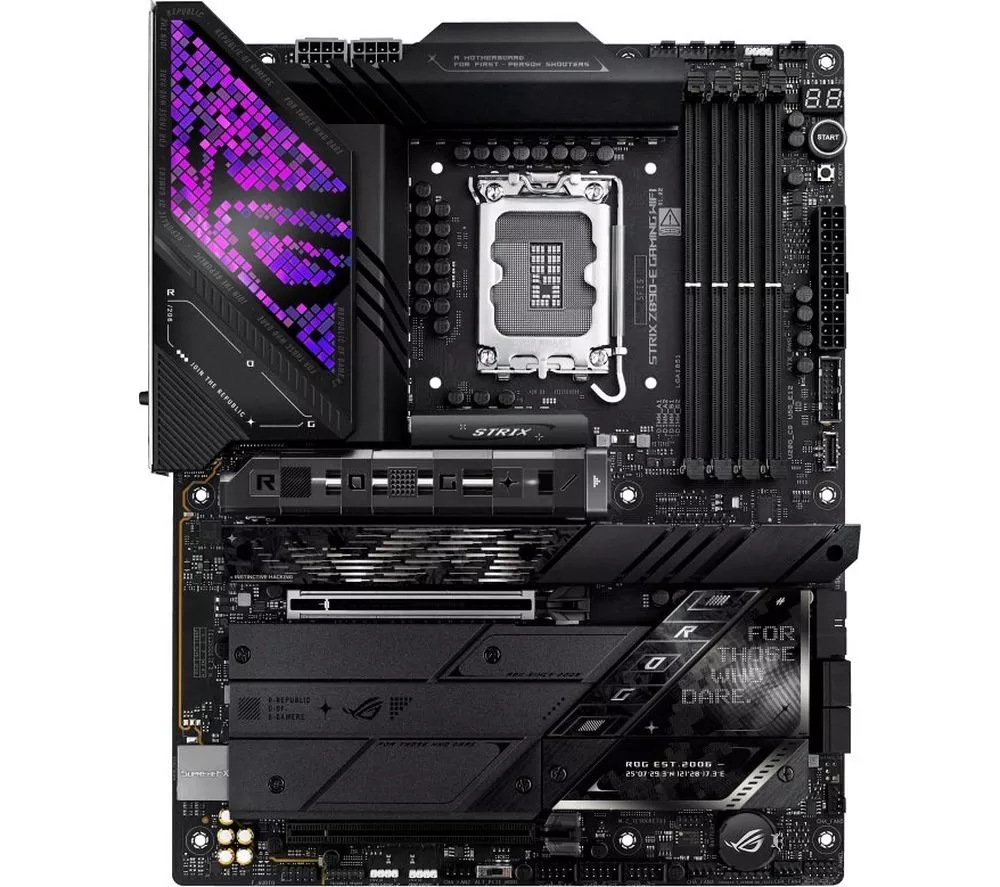

Technical specifications for ASUS ROG STRIX Gaming WiFi Z890-E LGA1851 Motherboard
OVERVIEW
Form factor
ATX
Chipset
Intel® Z890
Socket
Intel® LGA1851
Processor models supported
Intel® Core™ Ultra Processors (series 2)
Memory slots
4 x DIMM (Max RAM: 192 GB)
Memory standard
DDR5
Cooling features
Fan Xpert 4 (with AI Cooling II)
Operating systems supported
Windows 11

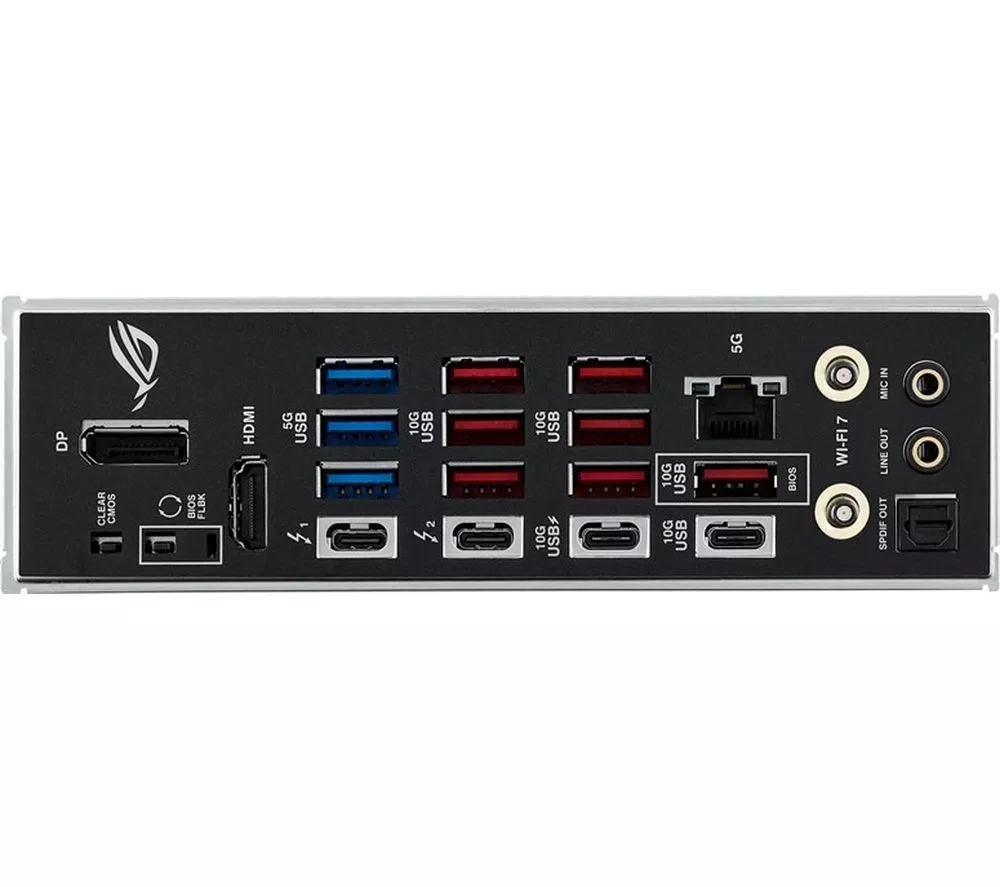

EXTERNAL CONNECTIVITY
Video output
– HDMI x 1 – DisplayPort x 1
LAN
– Intel® 5Gb Ethernet x 1 – ASUS LANGuard
Audio
3.5 mm jack x 5
USB
– USB Type-C x 3 – USB 3.0 x 12 – USB 2.0 x 3
Other external connections
– WiFi module x 1 – S/PDIF x 1
INTERNAL CONNECTIVITY
BIOS
– UEFI AMI BIOS – Flash ROM (256 MB)
Expansion slots
– PCIe 5.0 (x16) x 1 – PCIe 4.0 (x16) x 1 (support x4 mode)
Storage slots
– SATA x 4 (6 GB/s) – M.2 x 7
Cooling
– 4-pin CPU Fan header x 1 – 4-pin CPU OPT Fan header x 1 – 4-pin AIO Pump header x 1 – 4-pin Chassis fan headers x 5
Case
– Power LED x 1 – QLED x 1
Buttons
– Power – Clear CMOS – BIOS FlashBack
Power
– 24-pin main power x 1 – 8-pin 12 V power x 2
Other internal connections
– Addressable Gen 2 headers x 3 – Clear CMOS header x 1 – Chassis intrusion header x 1 – COM Port header x 1 – Front Panel Audio header (F_AUDIO) x 1 – S/PDIF Out header x 1 – SPI TPM header (14-1pin) x 1 – 10-1 pin System Panel header x 1 – Thermal Sensor header x 1
USB
– USB Type-C x 3 – USB 3.0 x 12 – USB 2.0 x 3
GENERAL
Box contents
– ASUS ROG STRIX Gaming WiFi Z890-E LGA1851 Motherboard – SATA 6Gb/s cables x 2 – Additional cooling Kit – Thermal pad for M.2 22110 x 1 – ASUS WiFi Q-Antenna x 1 – Cable ties package x 1 – M.2 Q-Latch package x 1 – M.2 Q-Slides x 2 – ROG key chain x 1 – ROG Strix stickers x 1 – M.2 rubbers x 7 – Documentation – Quick start guide
Software included
– Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 (with AI Cooling II) – ASUS GlideX – ASUS CPU-Z – TurboV Core – DTS Audio processing – Norton 360 for Gamers (60 Days Free Trial) – WinRAR (40 Days Free Trial) – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey – FlexKey – NPU Boost
